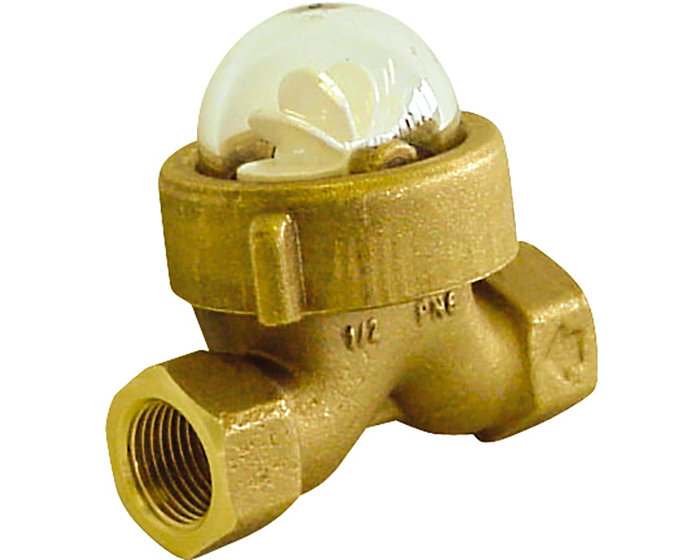

This controller is particularly suitable for low pressure and low temperature media. Cast brass body CB 754 S, polycarbonate dome, PS: 6 bar, PS: 70°C.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S108559 |
| CE_CERT | CE |
| Connections | BSP FF |
| Direction | Unidirectional |
| FILES_3D_PATHS | output/datasheets/221004/34443 |
| Face to Face (mm) | 80.0 |
| Gasket | NBR |
| In categories | Sight glasses |
| Body material | Brass CB 754S |
| MAAT | 1/2'' |
| Option certificate 3.1 | No |
| PS (bar) | 6 |
| SKU | 221004 |
| TS max (°C) | 70 |
| TS min (°C) | 10 |
| Warranty period | 1 year |
| Sight glass type | With rotor |
